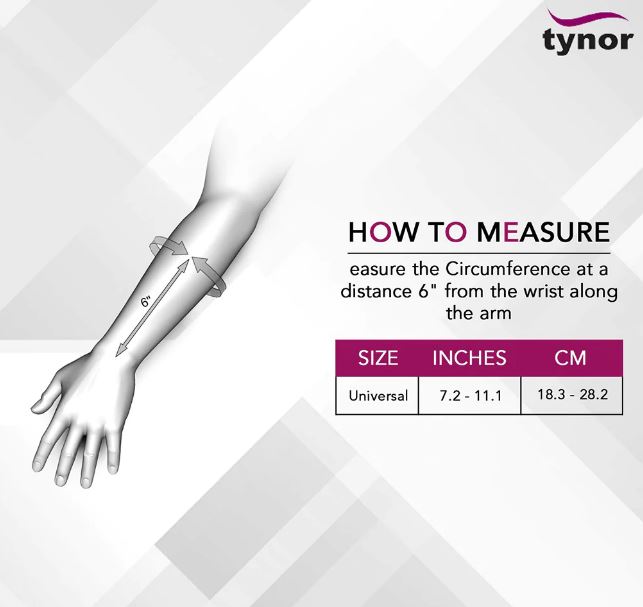

Sizes Available: Universal

ROM (Range of Motion) Elbow Brace

Reduce elbow pain with the Range of Motion Elbow Brace. This innovative device offers flexibility; its sophisticated dial system restricts the degree of flexion and extension of the elbow joint, allowing for gradual rehabilitation or immobilization of the elbow. With an adjustable, universal design, this brace offers personalized support to reduce pain and aid in recovery.


  • Light in weight
  • Single action locking
  • 3D Cushion Pads
  • Adjustable arm length
  • Universal size


  • Ideal for: controlling range of motion including immobilization and stabilization of elbow ligamentous injuries, mild to severe soft tissue injuries and sports-induced injuries.
  • To restrict some elbow movements to protect your elbow during rehabilitation.
  • The joint can be locked to stop some bending and/or straightening of your elbow.
  • Lightweight materials, 3D Cushion Pads, Adjustable for ideal fitting
  • Designed for comfortable use over long hours, relatively easy to wear with minimum assistance



  • Mobilizing brace in Stiff elbow
  • Post-operative immobilization
  • Conservative treatment of elbow luxation
  • Preventive injuries in Sports
  • Ligamentous injuries
  • Stabilization of elbow and upper limb fractures
  • Collateral ligament reconstruction
  • Tennis elbow, lateral condyle release
  • Elbow hyperextension correction

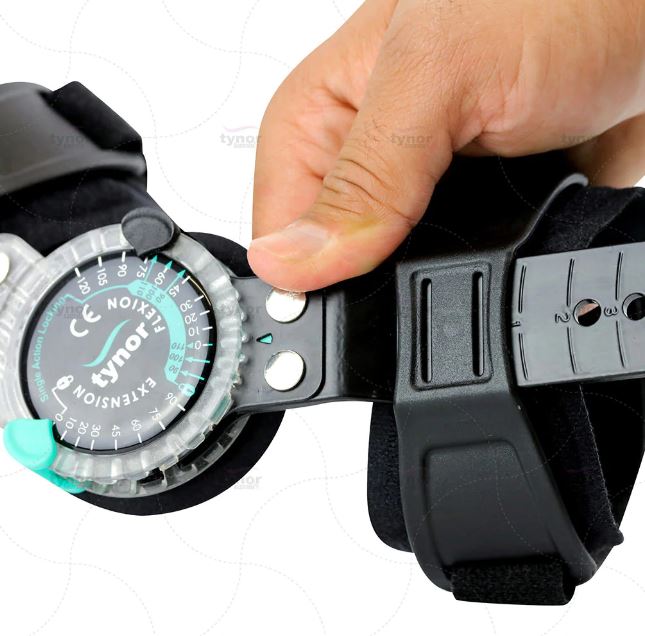

  • Rotate and press-lock setting to control range of motion. Flexion is limited to the range of 0°?120 °and 0°?90°of extension, adjustments in 15-degree increments.
  • The ROM elbow brace is made of a lightweight aluminum frame with high tensile strength
  • Semi-flexible cuffs of the brace, made of high-quality polymer, are padded with 3D molded cushion pads for better comfort of the upper arm and forearm
  • The Range of Motion (ROM) hinge is a sophisticated Multi-Point Graduated Mechanism (MPGM) that can be adjusted to fix the elbow at any angle of flexion or provide
  • The length of the device can be independently adjusted, both on the bicep and forearm side, as per the patient?s need.


  • ROM Elbow Brace is constructed from a strong aluminum frame with high-quality polymer semi-flexible cuffs padded with 3D molded cushion pads.
  • Neoprene liner with silicone coating enhances product grip, prevents slippage and migration of products. It provides high cushioning and comfort. Reduces the discomfort of tight straps.
  • Technical Material: Aluminum, Polypropylene, Steel, neoprene, Polyester




  • Overall Length : 36 cm (l) | Length below Elbow : 19 cm above Elbow : 16 cm | Extension : 0 to 90 degrees , Flexion : 0 to 120 degrees | Maximum circumference : 40 cm (at arm) 35 cm (forearm) | Velcro Strap : 2 Arm 2 Forearm | Shoulder strap


  • Weight/ Volume - Weight: 360 gm



  • Use this product under the strict guidance of an Orthotist/Doctor/Therapist.
  • Discontinue use and seek the guidance of a qualified doctor, in case of
  • Impaired sensation
  • Impaired blood flow
  • Allergy rash or itching
  • Pain increases or persists
  • Consult your doctor in case of concurrent use of another medical device.
  • Misuse or improper use of the device can lead to adverse effects and decreased effectiveness.
  • Follow the instructions mentioned on the box carefully.
  • Keep out of reach of children.
  • Recommendation:
  • Do not use on unstable fractures.
  • Not for use on patients with circulatory or sensory problems.
  • The excess pull of the built-in Locking mechanism for length adjustment may damage it
