The SimplyGo Mini, a light weight, feature filled and reliable POC that will meet all your demands.

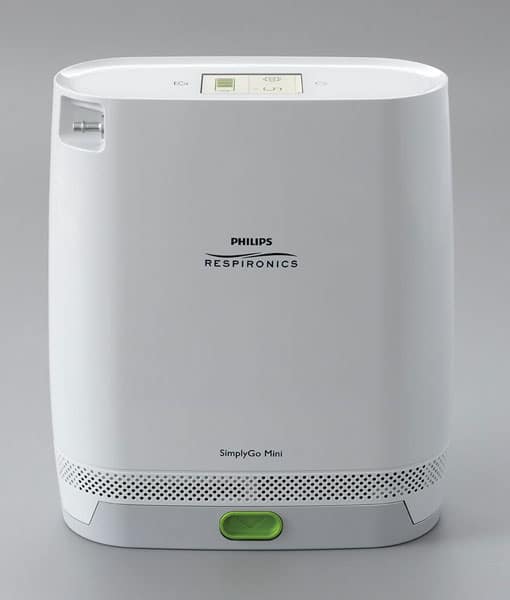

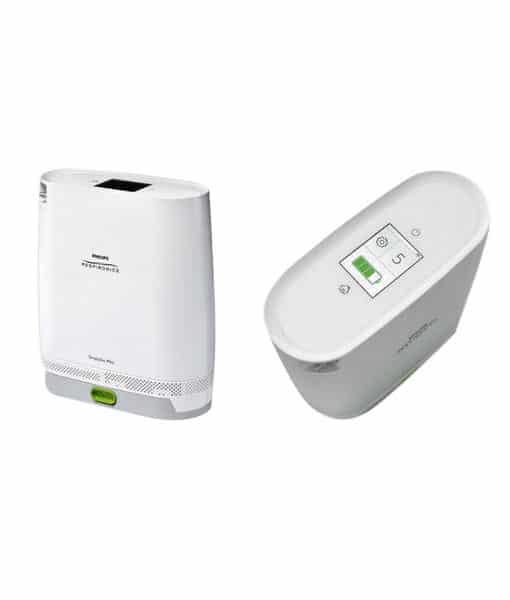

The SimplyGo Mini is the newest, smallest, and lightest member of the Right Fit portfolio of oxygen products from Philips Respironics. It is designed and rigorously tested to be reliable and durable in real-world environments, undergoing the same testing regimen as its counterpart, the proven SimplyGo POC.
Simply smart design

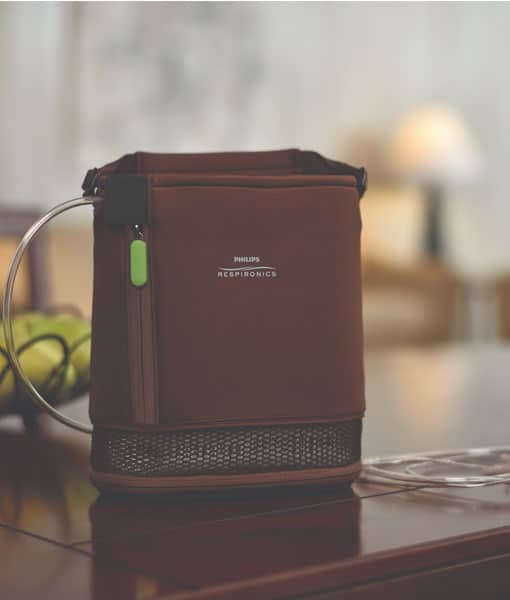

As the smallest and lightest POC ever developed by Philips Respironics, SimplyGo Mini is built for today’s patients with features like: attractive and sleek design; easy-to-remove external battery; light weight intuitive, easy-to-read screen; and a strong, comfortable carrying case.
SimplyGo Mini Portable Oxygen w/ FREE 12month Supply of Cannulas.
Oxygen Concentrations
At least 87% at all settings (maximum of 96%)
1Based on atmospheric pressure of 14.7 psia (101 kPa) at 70° F (21° C)
Pulse Mode Bolus size
Setting | Nom. pulse vol. at 20 BPM | Max. minute vol. output
1 11 ml 220 ml/min
2 22 ml 440 ml/min
3 33 ml 660 ml/min
4 44 ml 880 ml/min
5 50 ml 1,000 ml/min
+/- 25% or 6 ml, whichever is greater (average of 20 consecutive pulses) over the
rated environmental range
Sound level
43 dBA typical at settings 2 and 20 BPM; 46 dBA typical at settings 5 and 20 BPM
Size
With standard battery: 9.4 in. x 8.3 in. x 3.6 in. (23.9 cm x 21.1 cm x 9.1 cm)
With extended battery: 10.2 in x 8.3 in x 2.6 in (25.9 cm x 21.1 cm x 9.1 cm)
Weight
5 lbs. (2.3 kg) with standard battery installed
6 lbs. (2.7 kg) with extended battery installed
Power
AC power
Input 100 to 240 VAC, 50/60 Hz
Output 19 VDC, 6.3 A max
Power consumption 120 W while charging
DC power
Input 12 – 16 VDC
Output 19 +/- 5% VDC, 6.3 A
Alarm
Audible alarm
Sound level 56 dBA or greater when measured at 1 m
Alarm type No breath, low oxygen concentration, high breath rate, technical
Battery
Lithium ion 14.4 VDC (nominal)
Battery options: Standard battery, Extended battery (equals two standard batteries)
Dimensions :
Standard battery: 7.9 in. x 3.6 in. x 1.0 in. (20.1 cm x 9.1 cm x 2.5 cm)
Extended battery: 7.9 in. x 3.6 in. x 1.9 in. (20.1 cm x 9.1 cm x 4.8 cm)
Weight
Standard battery: 1.1 lbs. (0.50 kg)
Extended battery 2.1 lbs. (0.95 kg)
Watt-hour rating 3.4 Ah x 3.6V x 8 cells = 97.9 Wh per standard battery per standard battery
Charge time
Standard battery: 4 hours maximum
Extended battery: 8 hours maximum
