Unit : Each

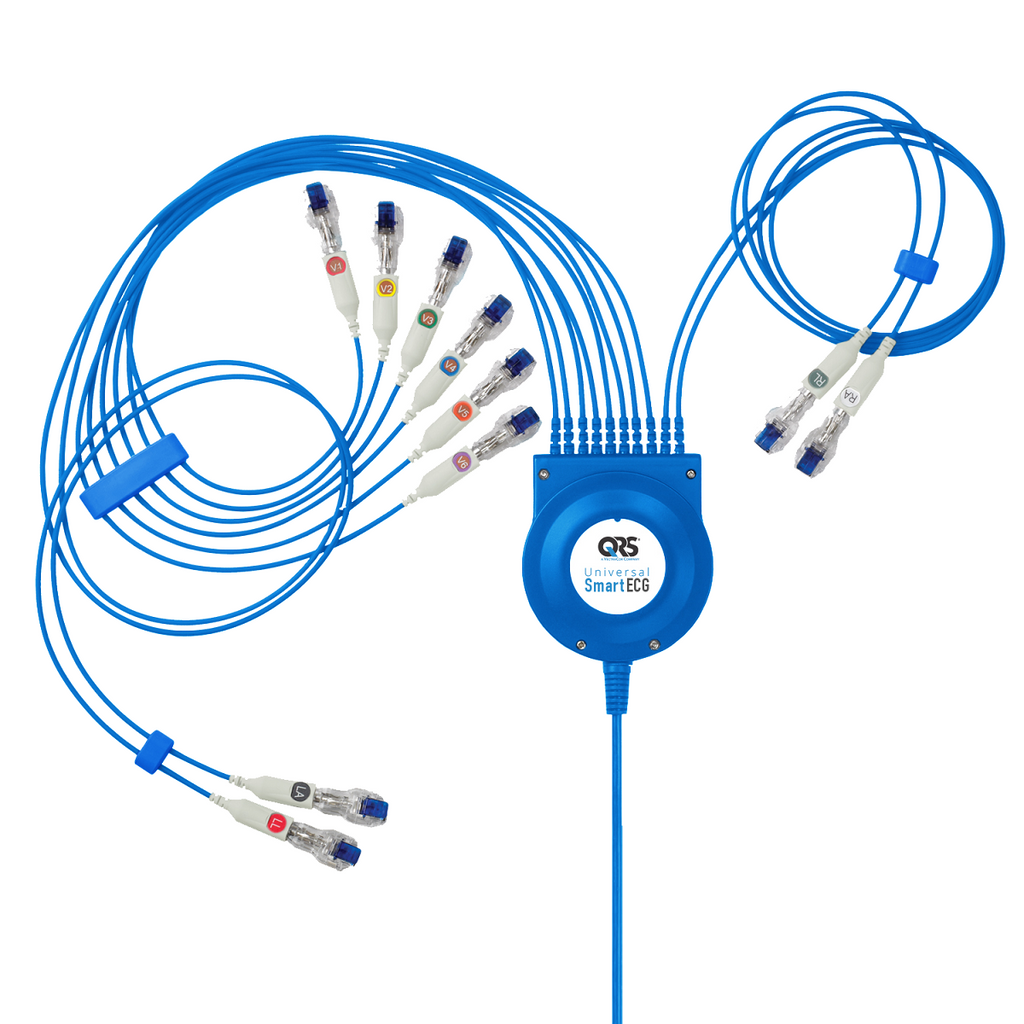

The Universal Smart ECG turns an off the shelf computer into a fully functioning ECG machine. Connect the Universal Smart ECG to a Personal Computer, laptop or tablet to acquire, store and analyse up to 12-channels of high-resolution ECG data. Perform resting ECG anytime, anywhere, with unparalleled ease-of-use and integration with the Best Practice & Medical director EMR systems.
Features:
- PC based device
- Best Practice & Medical Director compatible
- Narrative interpretation
- Easy & customisable reports
- Lightweight
- Compact & transportable
- Compatible with the powerful Vectraplex ECG software (purchased separately) providing Cardiac Electrical Biomarker CEB® and a derived 12-15 lead ECG with just 5 electrodes
Specification:
- Safety Standards: AAMI, EC53, IEC/EN60601-1, IEC/EN60601-1-2, IEC/EN 60601-2-25
- Patient Leads Length: Limb – 1M, Chest 0.6M
- Gain Sensitivity: 5, 10, 20mm/mV
- Input Range: +-6mV
- Defibrillator Protection: Patient leads isolated from system & operator with 4kV protection
- Frequency Response: 0.05 to 175Hz +-3dB
- Electrode Connections: 4mm banana plug with tab or snap connectors
- Dimensions: 85x91x20mm
- Weight: 250-335 gm depending on cables
- Operating Conditions: 10-35 degrees celsius, <85% humidity (non condensing)
- Kit Inclusions: Universal Smart ECG, QRS Resting ECG Tab Electrodes PK100, Sure-Lock snap & tab electrode adaptors PK10, Lead Placement Guide, Office Medic Software
- Warranty: 3 Years
- Included Software Updates & Support: 3 Years
MAINTENANCE: Please make sure your ECG is serviced & calibration check is completed yearly to ensure it functions to its optimum.
This is a non-returnable product
