Unit : Each

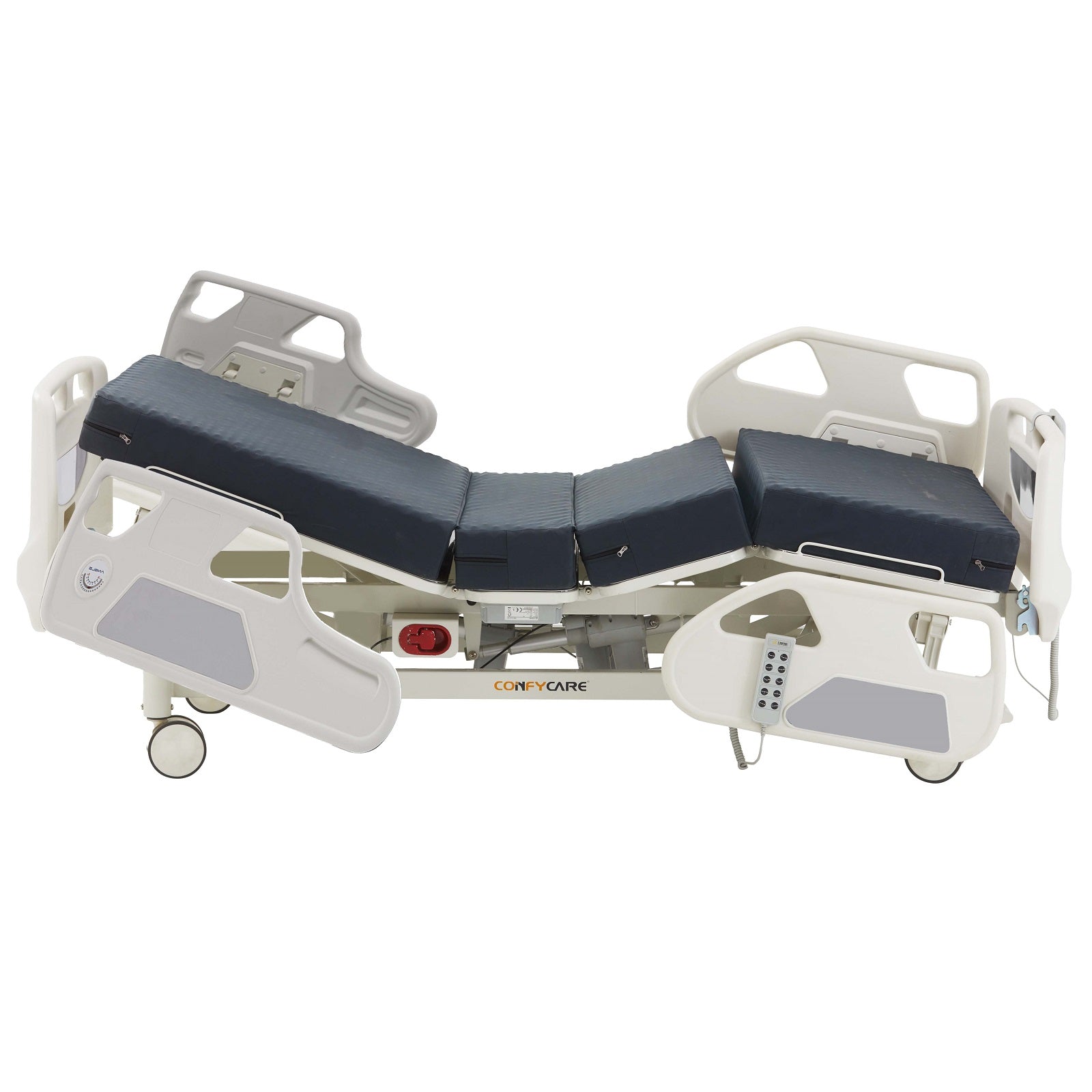

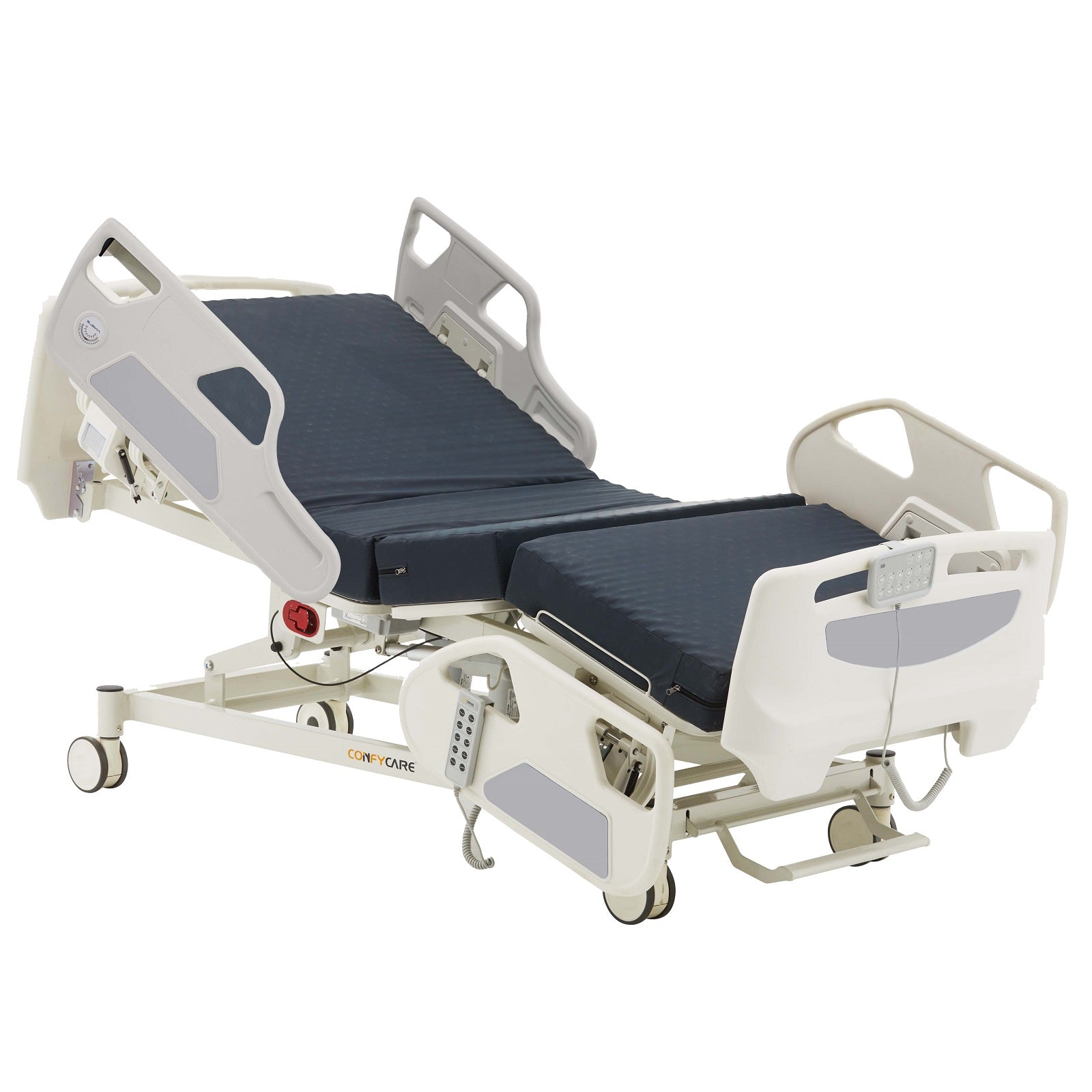

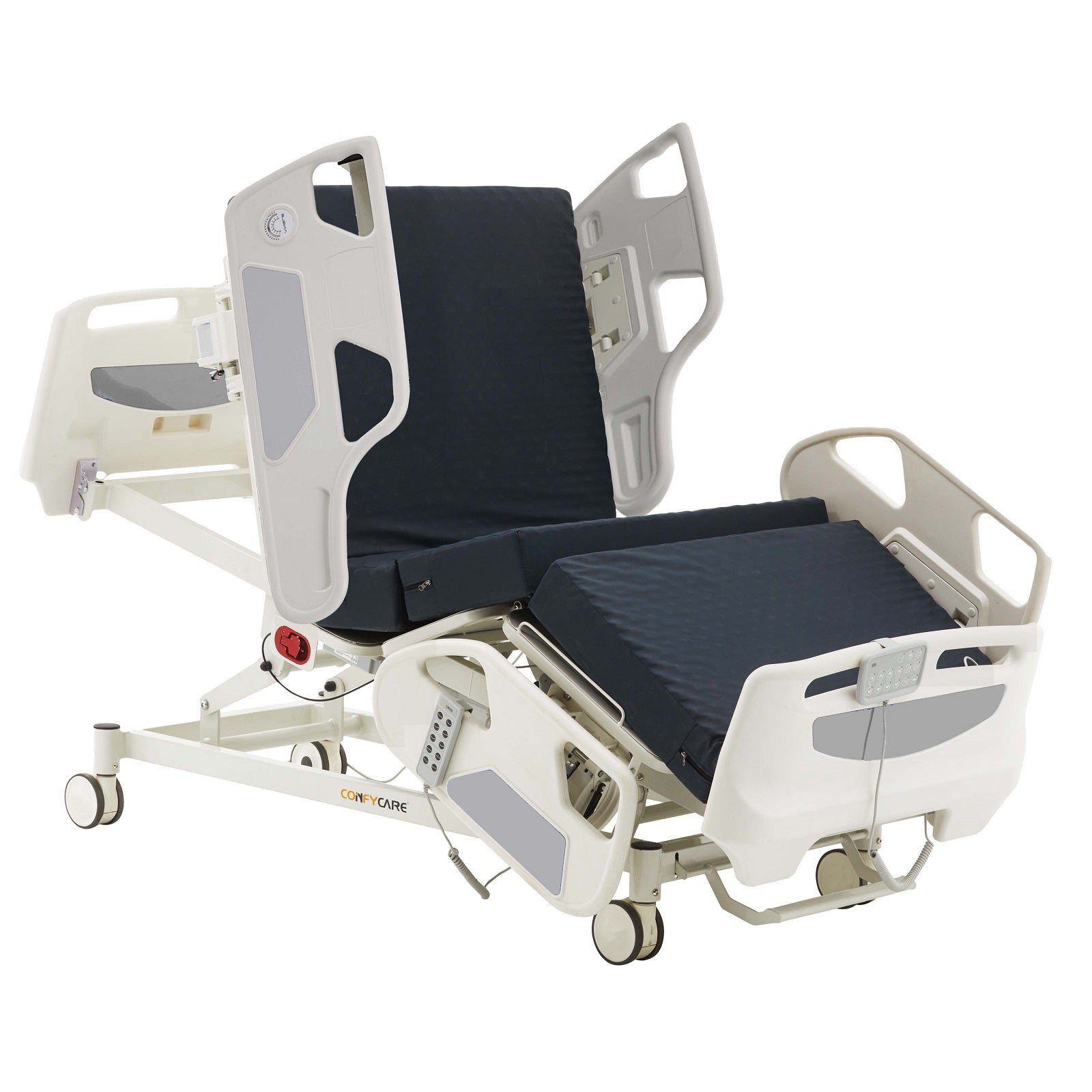

A strong, reliable and high quality five function hospital bed. Well featured including removeable boards, removeable ABS side rails, drainage bag holders, iv pole & 125mm central lock castors. An ideal product for higher needs patients and longer term patient care.

Five Function Hospital Bed Features:

  • Electric operation by handset with integral function lockout
  • Electrically operated backrest, height & knee break angle
  • Backrest manual CPR release on both sides
  • Removeable head & foot board
  • Patient handset & nurse control panel
  • Battery backup
  • Four ABS safety side rails
  • Four drainage bag holders on both sides
  • Heavy duty IV pole
  • Auto contour simultaneous adjustment of backrest & knee break
  • 125mm heavy duty central locking castors
  • Foam mattress

Five Function Hospital Bed Specification:

  • Overall length: 220cm
  • Overall width: 102cm
  • Height range: 44-74cm
  • Hoist clearance: 16cm
  • Mattress platform length: 195cm
  • Mattress platform width: 90cm
  • Mattress size: 195x90x10cm
  • Backrest angle: 0-75 degrees
  • Knee break angle: 0-35 degrees
  • Leg angle: 0-16 degrees
  • Trendelenburg & reverse trendelenburg: 0-13 degrees
  • SWL: 300KG
  • Warranty: 3 Years
  • Certification: CE, FDA, ISO13485-2016

MAINTENANCE: Please make sure your bed is serviced yearly to ensure your bed functions to its optimum. Lubrication of pivot points and moving points on your bed must be done on a regular basis

User Manual 5 Function Hospital Bed
